Stirring autoclave with comfort
for small sample sizes
modular • compact • elaborated
home > Hiclave reactors > HiClave S
HiClave S-Series
The HiClave S-series mini-reactors are the ideal equipment for laboratory-scale experiments with batch sizes from 25 to 125 ml.
The particularly convenient screw-lid is especially helpful for frequent opening and closing of the reactors.

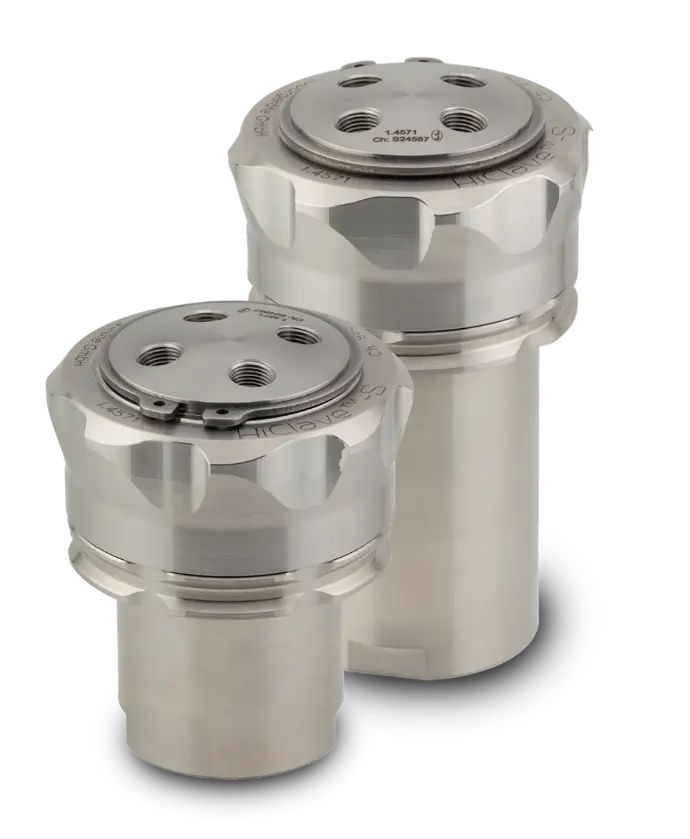

Thanks to multiple connection options and interchangeable container sizes, the reactor can be used flexibly.
HiClave S-reactors are therefore ideal for use in chemical research or for the first steps towards scaling up your new synthesis or digestion process.

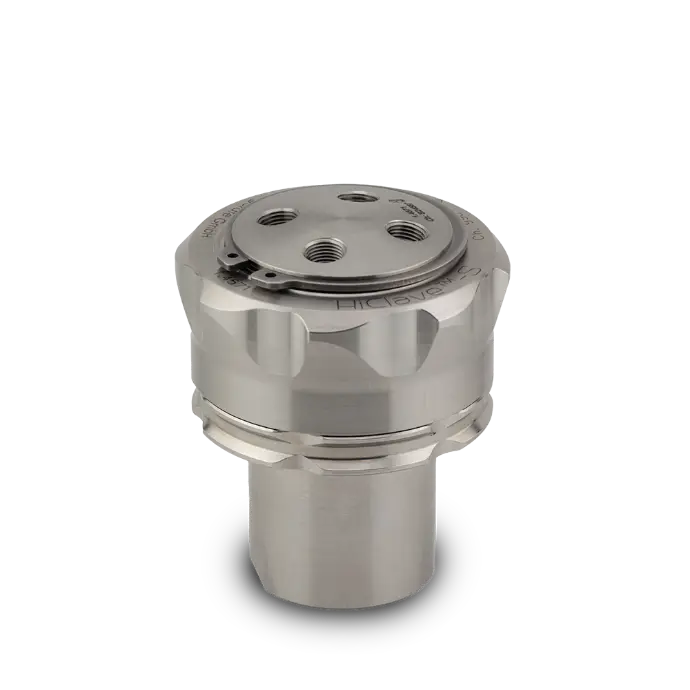

capacity
25 ml
diameter
ø 28mm
Max. temperature
350°C
Max. pressure
150 bar
Connections
up to 5

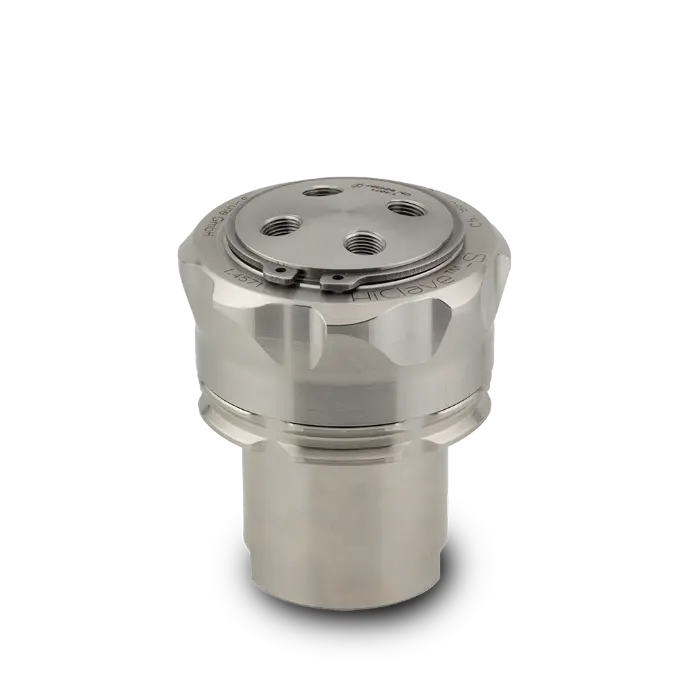

capacity
50 ml
diameter
ø 35mm
Max. temperature
350°C
Max. pressure
150 bar
Connections
up to 5

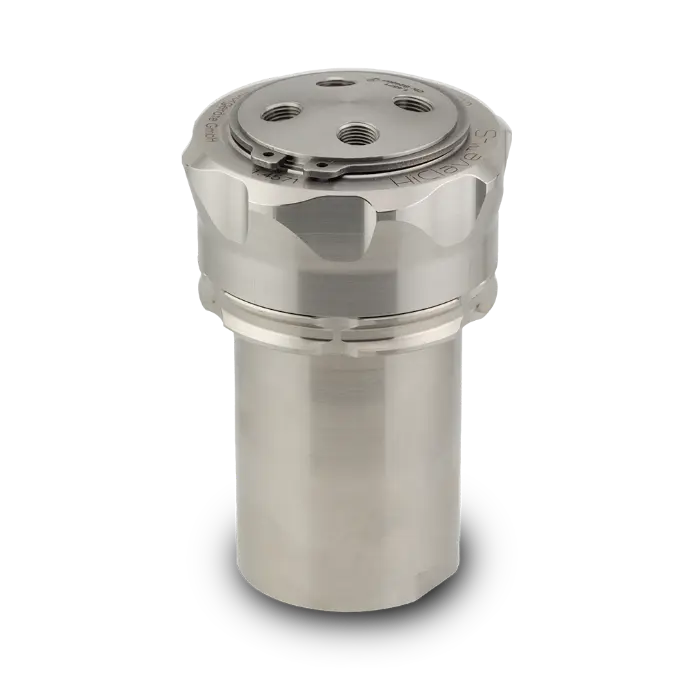

capacity
100 ml
diameter
ø 40mm
Max. temperature
350°C
Max. pressure
150 bar
Connections
up to 5
You are looking for a bespoke solution?
Together we will configure a system according to your requirements.

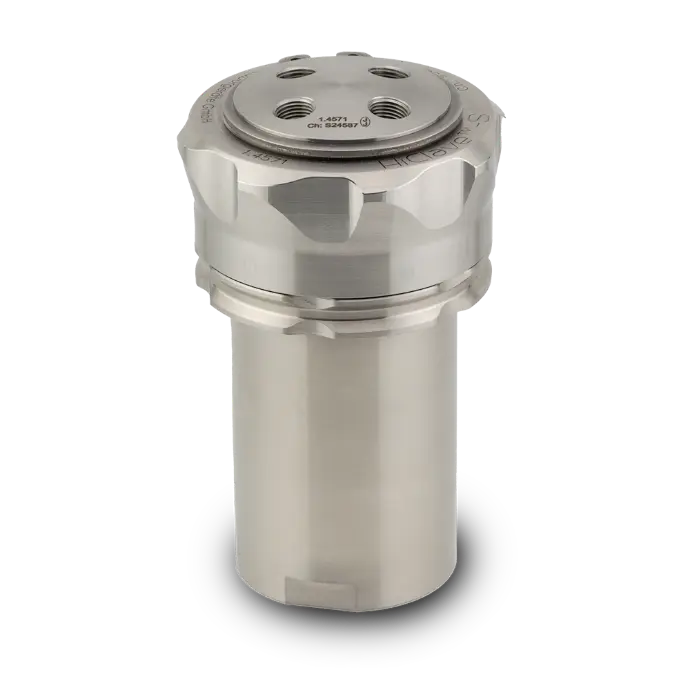

capacity
125 ml
diameter
ø 44mm
Max. temperature
350°C
Max. pressure
150 bar
Connections
up to 5
Material combinations
Stainless steel, Hastelloy®, Tantal or PFTFE
Max. permissible operating temperature
up to 350°C
Max. permissible operating temperature
with PTFE
250°C
Modular & compact
With a capacity of 25 to 125 ml, the HiClave S-series stirring autoclaves are suitable for a wide range of applications – with maximum temperatures of up to 350°C and working pressures of up to 150 bar.
Thanks to its modular design, the number of tests can be efficiently and quickly adapted to your specific requirements, yet the test setup remains unchanged.
Stainless steel or Hastelloy® are available as materials, with stainless steel optionally coated with tantalum or equipped with a PTFE insert.
Ergonomic closure lid
HiClave S reactors with capacities from 25 to 125 ml are compatible with the same closure.
The ergonomic shape of the screw cap makes it particularly easy to open and close.

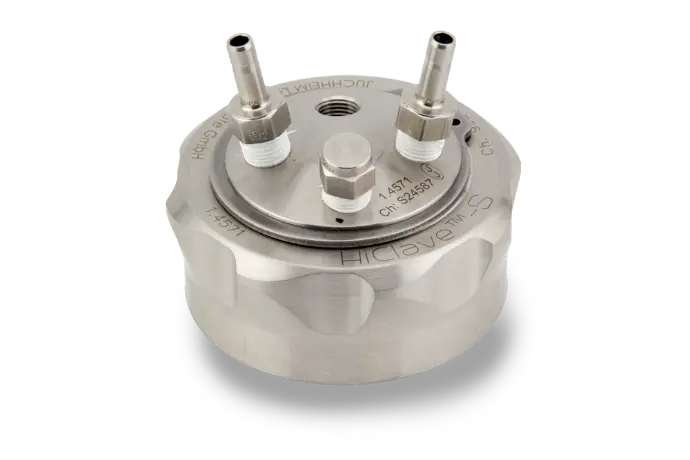

Connection options
Flexible connection options offer the advantage that the reactor can be configured in a versatile and flexible way for batch and continuous operation.
Inert inner surfaces

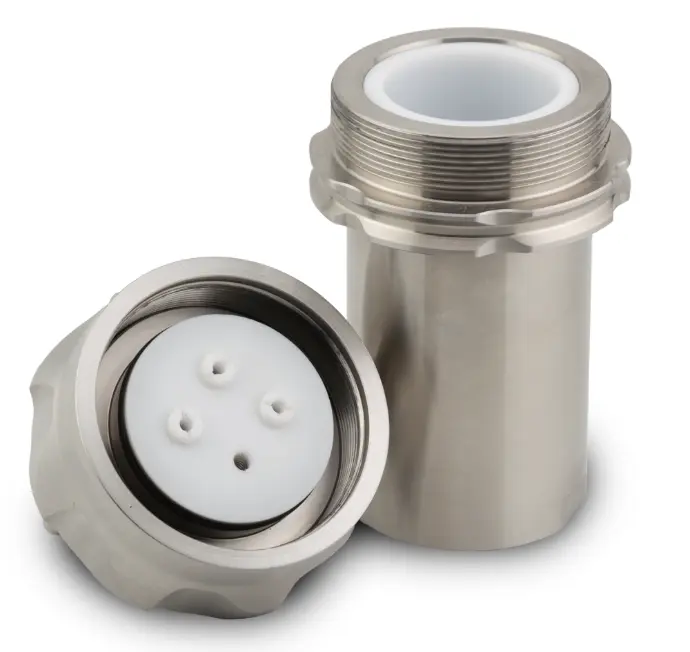

The standard version of the HiClave autoclaves is made of high-quality V4A stainless steel (316). For highly corrosive media, PTFE inserts, solid Hastelloy®, or tantalum coatings are also available.
This allows the choice of materials to be flexibly adapted to your requirements.

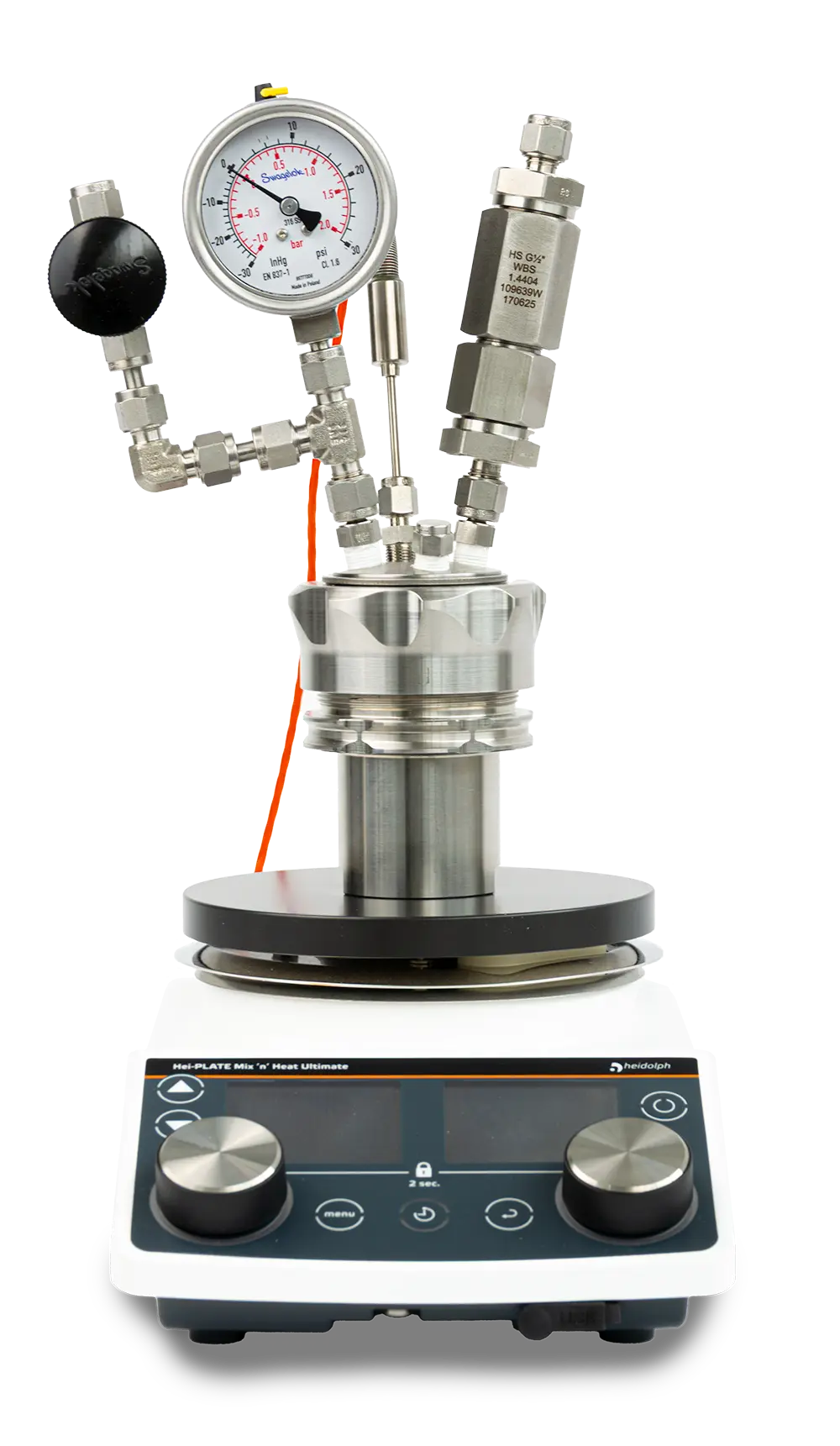

HiClave S-Systems
We offer complete systems with various options, tailored to your application and available budget.Base | Eco | Plus | Pro | |
• manometer • bursting disc • Pt100 Temperature sensors • pressure relief valve | ✓ | ✓ | ✓ | ✓ |
• Magnetic stirrer plate with "Heatspreader" | ✓ | ✓ | ✓ | - |
• Comfortable lifting device for the reactor | - | - | ✓ | ✓ |
• Overhead stirrer with magnetic coupling • Heating sleeve with integrated cooling | - | - | - | ✓ |
Additional options • Sampling • Pressure Sensor • PTFE-Inserts • aeration stirrers and other stirring devices • catalyst basket | (✓) | (✓) | (✓) | (✓) |
More information about HiClave S?
These are available for download as PDFs.
